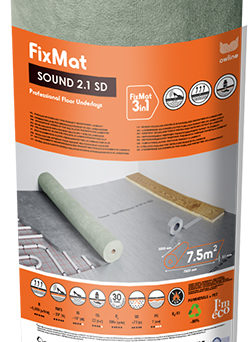

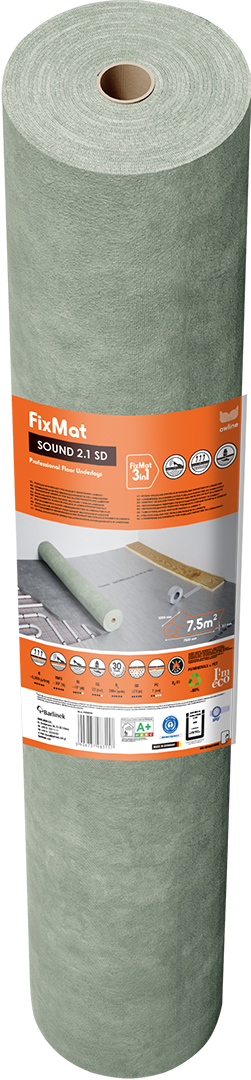

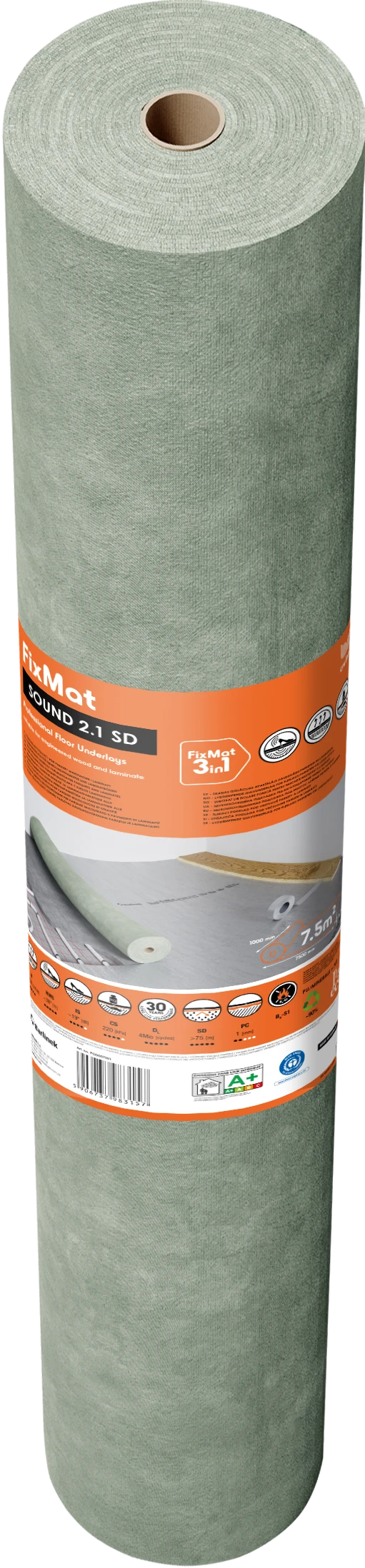

FIXMAT SOUND 2.1. SD – PROFESSIONAL UNDERLAYMENT

While maintaining the right proportions of density and thickness of the mat, barlinek has managed to design an ecological product that optimally meets all the requirements for the best underlays.

The fixmat sound 2.1 sd underlay is dedicated to be used under multi-layer engineered wood floors but can be successfully used under artificial laminate floor with locking joints (the underlay meets the strict requirements set by the EPLF association).

This underlay has a wide range of applications, but most importantly it:

• Improves acoustic comfort – high level of soundproofing and sound absorption.
• Perfectly conducts heat that may help with saving on heating costs.
• Has a very high coefficient of resistance to loads – for rooms with heavy traffic, extends the flooring service life.
• Additionally, it is integrated with a metallised vapour control film (after being glued with a tape) – it does not allow residual moisture from the substrate to pass through.

The 24ft 7″ x 39 3/8″ (7.5m x 1 m) flooring mat, due to its high specific weight of approx. 43.9 (Ib/ft2 (1.85 kg/m2), is available in rolls of 24ft 7″ (7.5 m2 ).

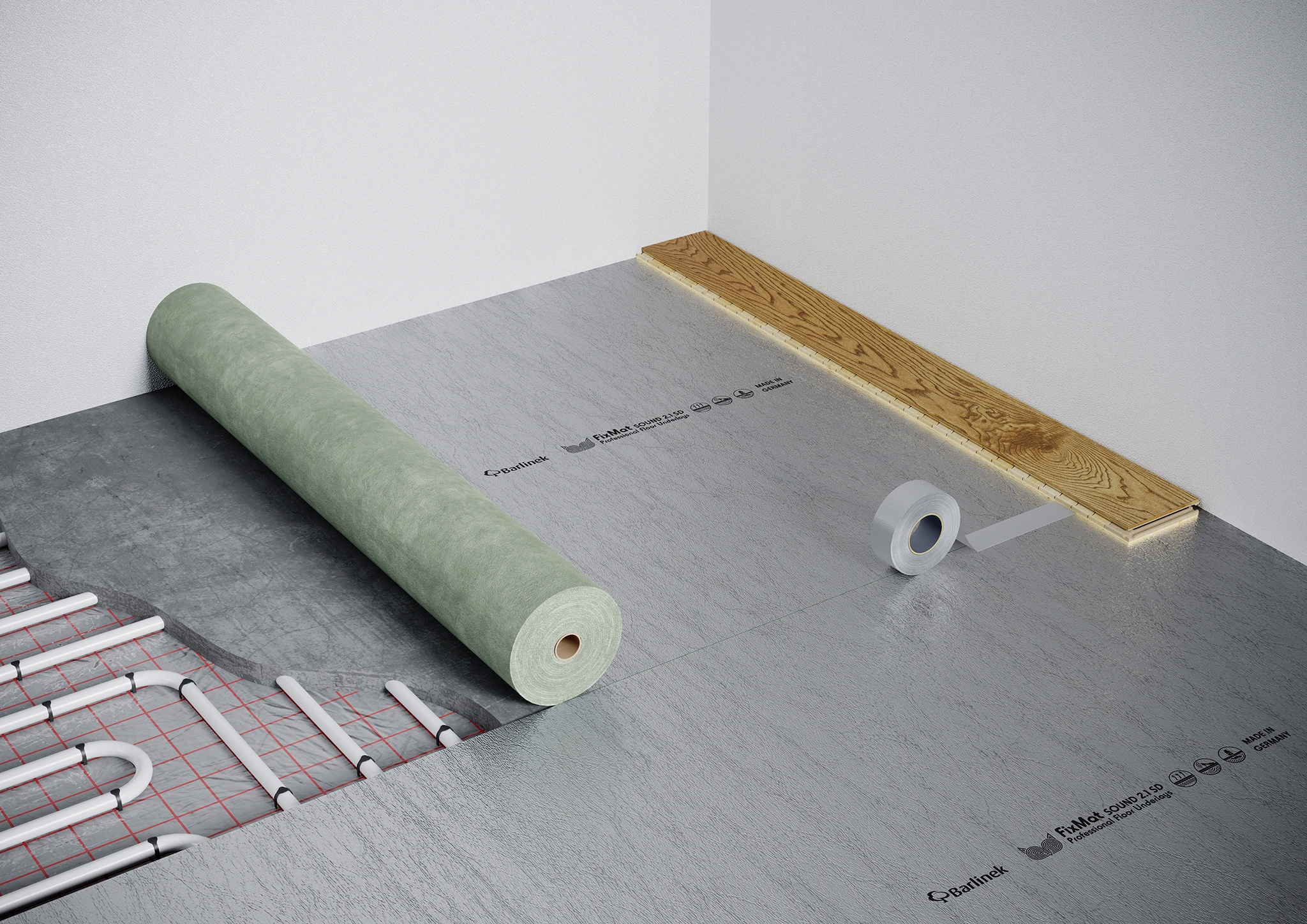

The underlayment is heavy, thus it does not roll; it adapts well to the substrate, and the correct rolling direction on the roll allows to spread it quickly and easily without much effort. It is the ideal mat format to minimise waste, making it easy to calculate the amount needed for each room.

By maintaining the appropriate proportions of mat thickness and density, Barlinek has succeeded in designing an ecological product, which optimally meets all the requirements set for the best underlays.

Only this type of underlay guarantees that a floating floor has properties which approximate those of a floor glued to the subfloor.

Recommended for layered wooden or hybrid floors.

Ecological – up to 90% made from natural ingredients.

BASIC TECHNICAL PARAMETERS (for engineered flooring):
FIXMAT SOUND 2.1SD
Thickness: 5/64” (2,15 mm)
Polyurethane-mineral mat, integrated with vapor-barrier foil
High level of soundproofing and sound absorption with IS ~ 19 [dB]
SD – with integrated vapour barrier (after bonding with
the alu-strap / free in pack) -> 246 ft (75 m)
Perfect for underfloor heating and cooling systems
R – thermal resistance – ~ 0,009 [m2K / W]
RTF – Flame-retardant class Bfl-s1
A self-adhesive tape is integrated to help in joining the mat

Packaging: 80.7 ft2 (7.5 m2) – POD007001
Roll sheet size 24 ft 7” x 39 3/8” (7.5 m x 1 m)
